STX Mounting Rail

Distributor Modular

Modular Fiber Optic Mounting Rail Distributor

Far too often users install distributors that are far oversized for the current application. This happens either to allow future network expansions or just because there is no solution available that really fits. Telegärtner’s new modular distributor can precisely be adapted to the current needs and grows with the network as it can be expanded very flexibly in the running network, saving a lot of money.

The vast product portfolio contains rail mount modules for 12 and 24 fibers with ST, SC and LC adaptors for multimode OM1 to OM4 and singlemode OS2 fibers. These modules are available for breakout/mini-breakout cables, for pre-terminated cable assemblies and also with an integrated hinged Telekom splice cassette, pre-loaded with pigtails that are already stripped ready to be spliced. The adaptors are mounted at a 45 degree angle for optimum patching even with a minimum of space available.

The stackable, compact modules of 35 x 215 x 155 mm offer large fiber slack storage. Cables can enter the modules from the top, bottom, behind top and behind bottom and can be chosen on-site. The modules can be installed on DIN 60715 T35 mounting rails as well as on the wall.

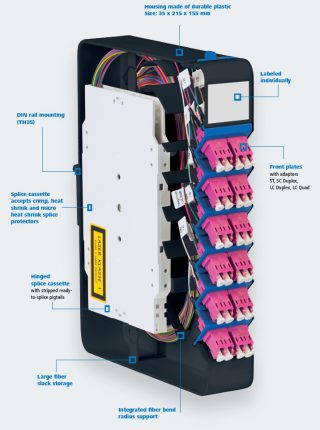

STX Mounting Rail Distributor Modular.01

Characteristics:

– Grow on demand thanks to modular concept
– Space-saving design with modules sized 35 x 215 x 155 mm
– Four different cable entries (top, bottom, top behind, bottom behind) for individual cable routing per module
– Four knockouts for individual cable entries can be opened on site
– Standardized M20 cable gland
– Huge variety of different fiber optic modules for breakout/mini-breakout/pre-terminated cables and with integrated splice cassette and pre-installed pigtails stripped ready-to-splice
– Modules for 12 and 24 fibers
– Fiber types multimode OM1 to OM4 and singlemode OS2
– Front plates with ST, SC duplex, LC duplex and LC Quad adapters
– Couplers installed at a 45 degree angle for optimum patch cord routing
– Integrated fiber bend radius support

– Hinged splice cassette “System Telekom“ for easy access and comfortable working
– Crimp, heat shrink and micro heat shrink splice protectors can be mixed in the same splice cassette
– All pigtails are tested individually
– Large fiber slack storage
– DIN rail mounting (TH35 according to DIN 60715) and wall-mounting possible
– No tools needed to add modules
– Housing made of durable plastic, protection class IP30 for indoor applications
– Temperature range from -5 to +55 °C
– Customer-specific solutions available on request

Modules with splice cassette, pigtails and adaptors

For loose tube cables, with integrated splice cassette; pre-installed pigtails stripped ready-to-splice included.
Comes with one M20 cable gland for cables with an outer diameter of 5 – 9 mm.
Colour: Anthracite grey (similar to RAL 7016), front plates blue (similar to RAL 5017).
Please order splice holders and splice protectors separately.

For order no. and detailed description please have a look into our brochure.

Modules with adaptors

For breakout and mini-breakout cables as well as for pre-terminated cables (TICNET).
Comes with one M20 cable gland for cables with an outer diameter of 5 – 9 mm.
Colour: Anthracite grey (similar to RAL 7016), front plates blue (similar to RAL 5017).
Please note: When configuring ready-to-install fiber optic links with the TICNET configurator, please select a uniform length of 0.7 m for all cable legs to ensure optimum cable routing.

For order no. and detailed description please have a look into our brochure.

Side panels

For the completion of an individual module or a row of modules.
Can be ordered as a spare part to replace the side panels of the modules.
Colour: Anthracite grey (similar to RAL 7016).

Order no.	Description	Remarks
H06011A0022	Modular STX Mounting Rail Distributor set of side panels	Set of right and left side panel

Accessories

For individual module configurations and for reliable and tight cable entry.

Order no.	Description	Remarks
F08000A0002	Splice holder for up to 12x crimp or micro heat shrink splice protectors	One splice cassette accepts up to two splice holders
F08000A0008	Splice holder for up to 6x heat shrink splice protectors	One splice cassette accepts up to two splice holders
F08000A0003	Crimp splice protector	System Telekom
F08000A0014	Crimp splice protector	System Telekom, pack of 150 ea.
F08000A0017	Micro heat shrink splice protector	Ø 1,3 mm, L = 30 mm
F08000A0010	Heat shrink splice protector	Ø 3 mm, L = 45 mm
F08000A0011	Patch cord S/FTP Cat.6_AHeat shrink splice protector	Ø 3 mm, L = 60 mm
H01011A0037	M20 cable gland for cables with an outer diameter of 5 – 9 mm	Polyamide PA6, grey
H01012A0048	M20 cable gland for cables with an outer diameter of 9 – 13 mm	Polyamide PA6, grey
B00012A0046	Blank insert for M20 hole	Plastic, black
