RJ45 Surge Protection Device

DataVoice

RJ45 Surge Protection Device

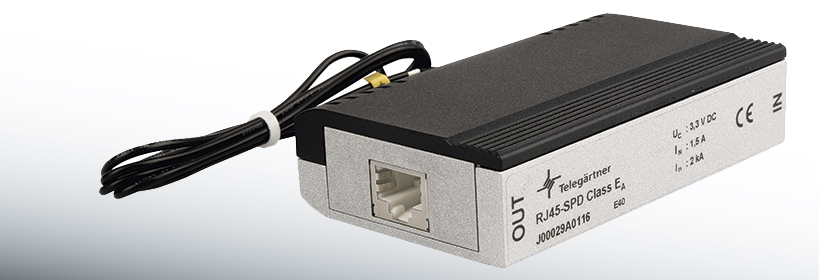

RJ45-SPD Class E_A

Structured cabling with RJ45 connecting hardware is a vital part of today‘s telecommunication. 100 % uptime is mandatory for seamless data transmission with data rates up to 10 Gigabits per second. However, galvanic, inductive and capacitive coupling as well as potential differences may cause enormous problems and hazards for any electronics connected to such a network.

To protect the electronic equipment, an appropriate RJ45 surge protection with proper grounding has to be implemented in the cabling link. Telegärtner‘s RJ45-SPD surge protection meets or exceeds the requirements for class E_A networks for powerful high speed applications including 10 Gigabit Ethernet and PoE/PoE+. Its integrated protection against overbending the contacts ensures that the link will still work even after a RJ11 or RJ12 connector had been plugged in.

Technical Data

Environment Requirements
-40 to +70° C			Operation temperature
IP20			Protection class
			Dimensions

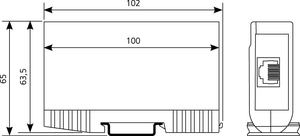

103/25/63 mm			Hight/Width/Depth
			Connection
RJ45/RJ11/RJ12			IN / OUT
≥750			Mating cycles
TS35			DIN rail

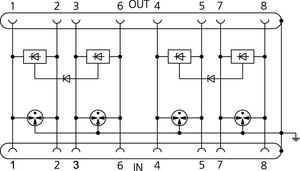

Transmission Characteristics
ISO/IEC 11801, DIN EN 50173-1			Class E_A (Permanent / Channel Link)
acc. to IEEE 802.3at			PoE / PoE+
acc. to DIN EN 61643-21			Surge Protection
Electrical Characteristics
≤ 3,3 V DC (60VDC/POE+)			Max. continuous operating voltage U_C
≤ 1,5 A (25 °C)			Nominal current I_N
100 A / 2 kA			Nominal discharge surge current (8/20)μs core-core / core-ground
≤ 9 V (B2-1 kV/25 A) / ≤ 600 V			Protection level Up core-core / core-ground
