MPO/MTP® 24
Patch Cords and Harness Cables with 24 Fibers
Patch Cords and Harness Cables with 24 Fibers
Superior quality and flexibility combined with extremely short installation time are the most urgent demands of modern IT infrastructures. Such challenging demands can be perfectly met with high-performance pre-terminated cabling solutions by Telegärtner.
The pre-terminated, ready-to-install MPO/MTP® cabling system is the future-proof and highly economic solution for fiber optic networks from 10 Mbit/s up to 100 Gbit/s according to EN 50173, EN 50174, ISO/IEC 11801 and ANSI/TIA-568.
MPO cabling with 12 fibers has proven its worth in countless ambitious projects. Now Telegärtner adds product solutions with 24 OM3 or OM4 multimode fibers per MPO/MTP® connector

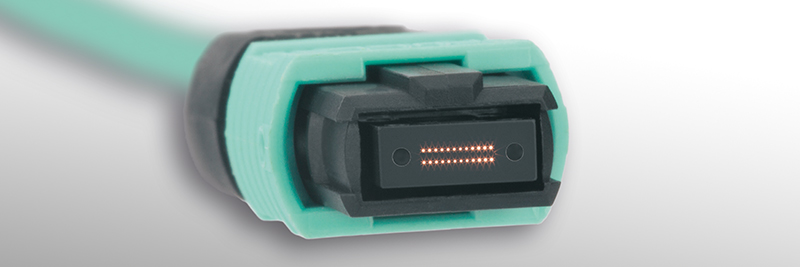

MPO/MTP® connector with 24 fibers for still higher fiber density
Telegärtner offers 24 MPO/MTP® fiber patch cords (MPO/MTP® 24 unpinned to MPO/MTP® 24 unpinned) and harness cables (MPO/MTP® 24 pinned to 2 x MPO/MTP® 12 pinned). As a standard, Telegärtner offers components according to fiber polarity type A for a clear, consistent fiber sequence. Components according to fiber polarity type B or C are also available at the same high product quality, of course.
| Technical Data: | |
| Insertion loss (IL) at 850 nm: | typ. 0.2 dB, max. 0.5 dB |
|
Return loss (RL) at 850 nm: |
min. 30 dB |
| Outer diameter of the cable:: | 3.8 mm |
|
Minimum bending radius: |
10 x outer diameter |
| Mating cycles: | min 500 |
|
Operating temperature: |
-5 °C to +55 °C |
| Fiber polarity Type A |
||||||||||||||||||||
| Fiber position connector 1 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| Fiber position connector 2 |
1 |
2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| Length | Order no. | Patch cord |
Connector | |
 |
1,0 m | L00830A2400 | aqua G50/125 OM3 | MPO 24 aqua |
| 2,0 m | L00831A2400 | aqua G50/125 OM3 | MPO 24 aqua | |
| 3,0 m | L00832A2400 | aqua G50/125 OM3 | MPO 24 aqua | |
| 5,0 m | L00833A2400 | aqua G50/125 OM3 | MPO 24 aqua | |
| 10,0 m | L00835A2400 | aqua G50/125 OM3 | MPO 24 aqua |
| Length | Order no. | Patch cord |
Connector | |
 |
1,0 m | L00830A2401 | violet G50/125 OM4 | MPO 24 violet |
| 2,0 m | L00831A2401 | violet G50/125 OM4 | MPO 24 violet | |
| 3,0 m | L00832A2401 | violet G50/125 OM4 | MPO 24 violet | |
| 5,0 m | L00833A2401 | violet G50/125 OM4 | MPO 24 violet | |
| 10,0 m | L00835A2401 | violet G50/125 OM4 | MPO 24 violet |
| Technical Data: | |
| Insertion Loss (IL) at 850 nm:l | typ. 0,2 dB, max. 0,5 dB |
|
Return loss (RL) at 850 nm: |
min. 30 dB |
| Outer diameter of the cable: | 3.8 mm |
|
Minimum bending radius: |
10 x outer diameter |
| Diameter single cable: | 3.1 mm |
|
Length single cable: |
ca. 500 mm |
| Mating cycles: | min. 500 |
|
Operatiing temperature: |
-5 °C up to +55 °C |
| Fiber polarity Type A |
||||||||||||||||||||||||
| Fiber position MPO24 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Fiber position MPO12 connector 1 |
1 |
2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | – | – | – | – | – | – | – | – | – | – | – | – |
| Fiber position MPO12 connector 2 | – | – | – | – | – | – | – | – | – | – | – | – | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Length | Order no. | Harness |
1st end | 2st end | |
 |
1,0 m | L00830A2410 | aqua G50/125 OM3 | MPO 24 türkis | 2x MPO 12 aqua |
| 2,0 m | L00831A2410 | aqua G50/125 OM3 | MPO 24 türkis | 2x MPO 12 aqua | |
| 3,0 m | L00832A2410 | aqua G50/125 OM3 | MPO 24 türkis | 2x MPO 12 aqua | |
| 5,0 m | L00832A2410 | aqua G50/125 OM3 | MPO 24 türkis | 2x MPO 12 aqua | |
| 10,0 m | L00835A2410 | aqua G50/125 OM3 | MPO 24 türkis | 2x MPO 12 aqua |
| Length | Order no. | Harness |
1st end | 2st end | |
 |
1,0 m | L00830A2411 | violet G50/125 OM4 | MPO 24 violet | 2x MPO 12 violet |
| 2,0 m | L00831A2411 | violet G50/125 OM4 | MPO 24 violet | 2x MPO 12 violet | |
| 3,0 m | L00832A2411 | violet G50/125 OM4 | MPO 24 violet | 2x MPO 12 violet | |
| 5,0 m | L00832A2411 | violet G50/125 OM4 | MPO 24 violet | 2x MPO 12 violet | |
| 10,0 m | L00835A2411 | violet G50/125 OM4 | MPO 24 violet | 2x MPO 12 violet |
