DataVoice
Distributor MPD24
for Surface Mounting
for Surface Mounting
Telegärtner now offers a new series of its Modular Patch Distributors MPD24 with up to 24 ports for surface mounting. The MPD24 distributor is either available as a modular version for installation with Telegartners shielded or unshielded keystone jacks (series AMJ-S Modules, AMJ Modules K, UMJ Modules K) or as a version with IDC termination and fully-compensated RJ45 jacks rated Category 6A (IEC 60603-7-51).
The easy-to-install metal chassis enables users the installation of a structured cabling systems without the need for additional racks or distributors. Networks in doctor‘s or lawyer´s offices, residential establishments, small offices and at home can be set up in a cost-effective manner.
| Technical Data | ||||
| Sheet steel zinc plated | Housing base plate |
|||
| varnished pure white, RAL 9010 | Housing cover | |||
| sheet steel zinc plated | Frontplate |
|||
| Ground cable AWG11, tin plated | Ground cable AWG11 with terminal | |||
| RoHS compliant | Directive 2011/65/EU |
|||
| Performance Characteristics | ||||
|
| Colour | Remarks | Description | Order no. | ||||||||||||||||

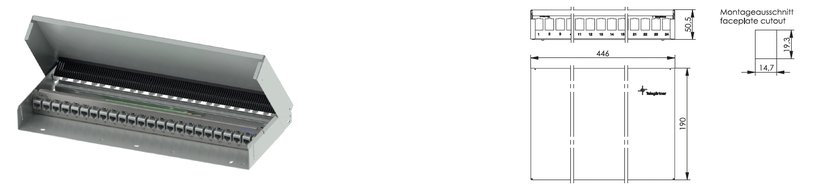

| pure white RAL 9010 | incl. cable management; 24 Ports; for AMJ-S Module, AMJ Module K, AMJ Coupler K, UMJ Module K, UMJ Coupler K | MPD24 AMJ/UMJ | H02025A0260 |
| Technical Data | ||||
| Sheet steel zinc plated | Housing base plate |
|||
| varnished pure white, RAL 9010 | Housing cover | |||
| stainless sheet steel | Cover |
|||
| acc. to IEEE 802.3 at | PoE+ | |||
| ISO/IEC 11801, DIN EN 50173-1 | Category 6A |
|||
| acc. IEEE 802.3 an | 10 Gigabit Ethernet | |||
| Performance Characteristics | ||||
|
| Colour | Remarks | Description | Order no. | ||||||||||||||||

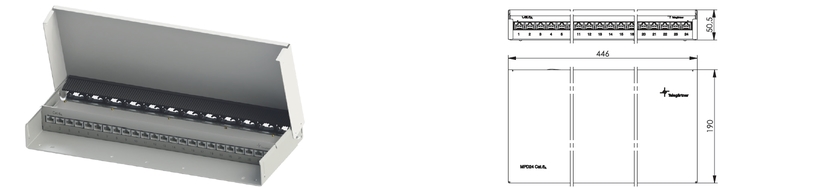

| pure white RAL 9010 | incl. cable management; termination via IDC (LSA Plus) terminals with colour coding acc. to T568A and B | MPD24-HS K Cat.6A | J02023A0053 |
