AMJ-S Module Cat.6A

The Telegärtner Modular System

Slim Edition

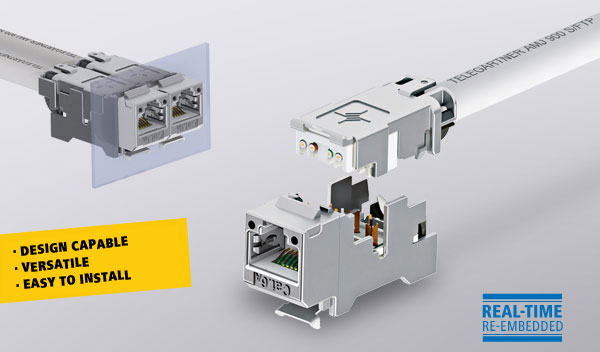

With the AMJ-S Module Telegärtner presents the next revolutionary stage of Cat.6_A connecting hardware for structured cabling. The fully shielded AMJ-S Module for 10 Gigabit Ethernet is based on the transmission advantages of the million times proven connection technology from Telegärtner and offers cabling professionals various possibilities in their daily cabling tasks.

AMJ-S Modul: Less space required. More product innovations.

Telegärtner already made a mark on the flexibility in structured cabling with the proven AMJ Module K Cat.6_A. With the new AMJ-S Module Cat.6_A Telegärtner now goes a step further: This is ensured by several innovations in addition to the proven features.

– Cat.6_A Jack
according to ISO/IEC 11801 AMD2 (2011-06) with the proven Telegärtner contact overbending protection

– Standardised interface
according to IEC 60603-7-51

– Design capable module carrier
to fit the switching programs of all well-known manufacturers

– Cable strain relief
for cable diameters from 5 to 9 mm

– Cat.6_A wire management
with full metal shield between the wire pairs, available with colour coding T568A or T568B; excellent transmission properties as connecting hardware Cat.6_A

– Quick bonding
AMJ-S Modules can be connected directly to pre-assembled grounding cables at the panel connector, e.g. with a steel cable duct

Integrated 360° shield connection –
Automatic adaptation to cable diameter in one action

– IDC termination
For large bandwidth on copper conductors with solid wire AWG26/1 – 22/1 and for flexible stranded wires AWG27/7 – 22/7
