    AMJ-S DD Module

    DataVoice

    AMJ-S DD Module Cat.6A

    and corresponding Packaging Sets

    (Download brochure (PDF

    The new AMJ-S DD Module offers users an easy way to protect expensive and  mobile IT equipment having LAN access ports from damage. By means of its  reduced pull-out force jack design, the AMJ-S DD Module first releases a  connection between a patch cord and an IT device once a certain pull-out force in  the mating direction is reached. This prevents damage of expensive boards or  destructed jacks of the IT equipment.

    Expensive repairs are now a thing of the past. Even though the jack is designed to feature a lower pull-out force than the standard specification IEC 60603-7 for RJ45 jacks and plugs foresees, it still offers enough insertion  and retention force to prevent accidental release.

    Application Examples

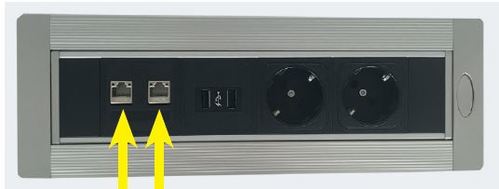

    AMJ-S DD Module Cat.6A.02

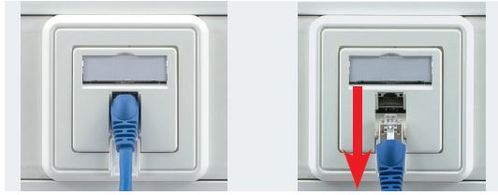

    AMJ-S DD Module Cat.6A.03

    AMJ-S DD Module as
    part of modular
    furniture faceplates

    AMJ-S DD Module
    as part of generic
    structured cabling

    • – Cat.6A, IEC 60603-7-51
    • – 10 Gigabit Ethernet acc. IEEE 802.3an
    • – IDC termination (solid: AWG26-22/1; stranded: AWG27-22/7)
    • – Robust zinc diecast housing with 360° shield for secure data transmission regardless of outside electrical interference
    • – field assembly on site; without special tool
    • – defined retention force of the RJ45 jack to release connection once a certain pull-out force in the mating direction is reached
    • – suitable for RJ11/RJ12/RJ45 plugs
    • – design capable to fit the switching programs of all well-known switching manufacturers
    • – optional retrofit dust cover flaps

    Order information

    Modules

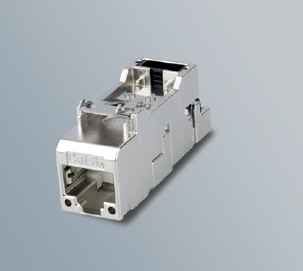

    AMJ-S DD Module Cat.6A.04
    Order no. Description Remarks PU
    J00029A4000 AMJ-S DD Module
    Cat.6A T568A    		 tool-free connectivity, suitable for RJ45/11/12 plugs; integrated protection
    against damage of contacts by means of automatic defined release of connection    		 12
    J00029A4001 AMJ-S DD Module
    Cat.6A T568B    		 tool-free connectivity, suitable for RJ45/11/12 plugs; integrated protection
    against damage of contacts by means of automatic defined release of connection    		 12

    Packaging sets for generic structured cabling

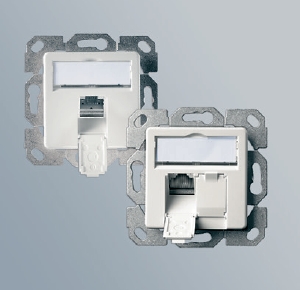

    AMJ-S DD Module Cat.6A.05
    Order no. Description PU
    J00020A0520 module carrier AMJ-S single gang UP/50 alpin white; incl. 1 AMJ-S DD Module Cat.6AT568A 5
    J00020A0521 module carrier AMJ-S singel gang UP/50 alpin white; incl. 1 AMJ-S DD Module Cat.6AT568B 5
    J00020A0522 module carrier AMJ-S double gang UP/50 alpin white; incl. 2 AMJ-S DD Module Cat.6AT568A 5
    J00020A0523 module carrier AMJ-S double gang UP/50 alpin white; incl. 2 AMJ-S DD Module Cat.6AT568B  5
    AMJ-S DD Module Cat.6A.06
    Order no. Description PU
    J00020A0524 module carrier AMJ-S single gang UP/0 flex, design capable; incl. 1 AMJ-S DD Module Cat.6A T568A 5
    J00020A0525 module carrier AMJ-S single gang UP/0 flex, design capable; incl. 1 AMJ-S DD Module Cat.6A T568B 5
    J00020A0526 module carrier AMJ-S double gang UP/0 flex, design capable; incl. 2 AMJ-S DD Module Cat.6A T568A 5
    J00020A0527 module carrier AMJ-S double gang UP/0 flex, design capable; incl. 2 AMJ-S DD Module Cat.6A T568B  5
