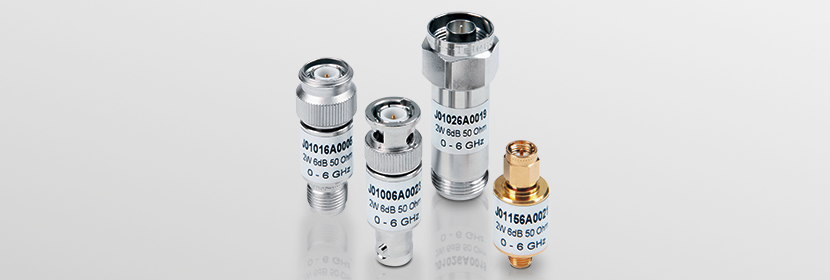

The Telegärtner attenuators are used to reduce rf signal levels. Designed for use up to 6 GHz, these attenuators guarantee a precise signal attenuation of 3, 6, 10 or 20 dB, depending on the type used. Typical applications are in the field of test and measurement, as well as for antenna lines, where the emission must be set at defined levels ( eg. mobile communications, WLan etc. ).

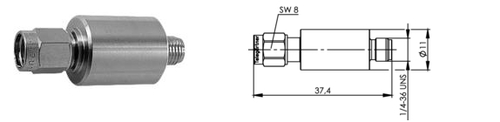

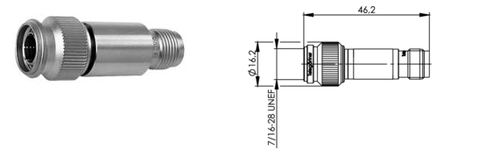

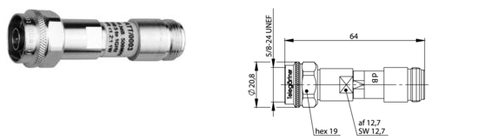

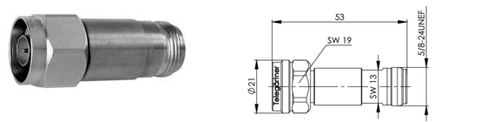

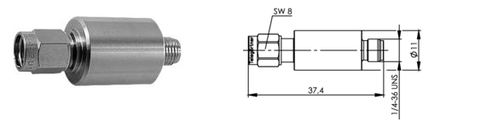

| Characteristics | |||
| Frequency Range up to 6 GHz • Precise attenuation values: +/- 0.1 dB up to 2 GHz, +/- 0.2 dB up to 5 GHz, +/- 0.3 dB up to 6 GHz • 50 Ohm impedance • additional attenuation values and mating face designs on request |
|||
| Order no. | Attenuation | Max. Frequency | Max. Power | Remarks |
| J01156A0011 | 3 dB | 10 GHz | 2 W | m-f |
| J01156A0021 | 6 dB | 10 GHz | 2 W | m-f |
| J01156A0031 | 10 dB | 10 GHz | 2 W | m-f |
| J01156A0041 | 20 dB | 10 gHz | 2 W | m-f |
| Order no. | Z | Max. Frequency | Remarks |
| J01006A0834 | 50 | 1,5 GHz | BNC Attenuator; m-f |
| J01006A0835 | 50 | 1,5 GHz | BNC Attenuator; m-f |
| J01006A0836 | 50 | 1,5 GHz | BNC Attenuator; m-f |
| J01006A0837 | 50 | 1,5 GHz | BNC Attenuator; m-f |
| J01006A0013 | 50 | 500 MHz | BNC Through Termination; m-f |
| J01006A0014 | 75 | 500 MHz | BNC Through Termination; m-f |
| .order no | Attenuation | Max. Frequency | Max. Power | Z | Remarks |
| J01006A0022 | 3 dB | 6 GHz | 2 W | 50 | m-f |
| J01006A0023 | 6 dB | 6 GHz | 2 W | 50 | m-f |
| J01006A0024 | 10 dB | 6 GHz | 2 W | 50 | m-f |
| J01006A0025 | 20 dB | 6 gHz | 2 W | 50 | m-f |
| Order no. | Attenuation | Max. Frequency | Max. Power | Remarks |
| J01016A0004 | 3 dB | 10 GHz | 2 W | m-f |
| J01016A0005 | 6 dB | 10 GHz | 2 W | m-f |
| J01016A0006 | 10 dB | 10 GHz | 2 W | m-f |
| J01016A0007 | 20 dB | 10 gHz | 2 W | m-f |
| Order no. | Attenuation | Max. Frequency | Max. Power | Remarks |
| J01016A0004 | 3 dB | 10 GHz | 2 W | m-f |
| J01016A0005 | 6 dB | 10 GHz | 2 W | m-f |
| J01016A0006 | 10 dB | 10 GHz | 2 W | m-f |
| J01016A0007 | 20 dB | 10 gHz | 2 W | m-f |
| Order no. | Attenuation | Max. Frequency | Max. Power | Remarks |
| J01026A0006 | 3 dB | 1 GHz | 1 W | m-f; inner conductor gold plated |
| J01026A0007 | 6 dB | 1 GHz | 1 W | m-f; inner conductor gold plated |
| J01026A0008 | 10 dB | 1 GHz | 1 W | m-f; inner conductor gold plated |
| J01026A0009 | 20 dB | 1 gHz | 1 W | m-f; inner conductor gold plated |
| Order no. | Attenuation | Max. Frequency | Max. Power | Remarks |
| J01026A0018 | 3 dB | 10 GHz | 2 W | m-f; inner conductor gold plated |
| J01026A0019 | 6 dB | 10 GHz | 2 W | m-f; inner conductor gold plated |
| J01026A0020 | 10 dB | 10 GHz | 2 W | m-f; inner conductor gold plated |
| J01026A0021 | 20 dB | 10 gHz | 2 W | m-f; inner conductor gold plated |
| Order no. | Attenuation | Max. Frequency | Max. Power |
| J01156R0011 | 3 dB | 6 GHz | 2 W |
| J01156R0021 | 6 dB | 6 GHz | 2 W |
| J01156R0031 | 10 dB | 6 GHz | 2 W |
| J01156R0041 | 20 dB | 6 GHz | 2 W |
| Order no. | Attenuation | Max. Frequency | Max. Power |
| J01016R0004 | 3 dB | 6 GHz | 2 W |
| J01016R0005 | 6 dB | 6 GHz | 2 W |
| J01016R0006 | 10 dB | 6 GHz | 2 W |
| J01016R0007 | 20 dB | 6 GHz | 2 W |
