AMJ Module K Cat.6_A

The Telegärtner Modular System

Shielded Network Cabling in Cat.6A

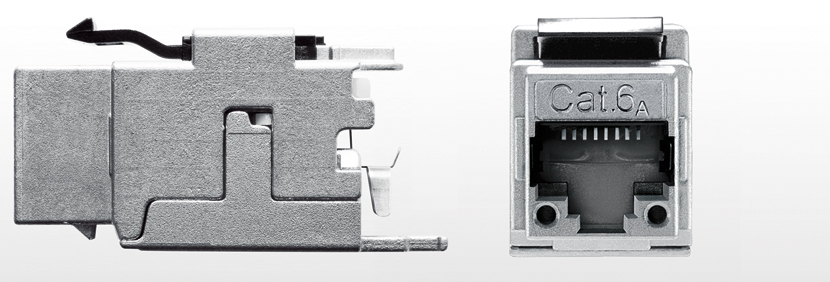

Telegärtner has developed a fully-shielded AMJ Module K Cat.6_A with outstanding transmission characteristics for 10 Gigabit-Ethernet. Manufacturing the Cat.6_A core and the IDC termination on a fully-automated production line guarantees an excellent price/performance ratio combined with quality inspections on the line which set new standards. With its 19.3 x 14.7 mm dimensions, the module fits in many applications employing the universally available mounting cut-outs of faceplates and 19” patch panel solutions.

Telegärtner’s developed IDC termination dependably accepts contacts ranging from AWG22/1 up to a minimum diameter of AWG27/7 for flexible wires. The AMJ Module K Cat.6_A thus also recommends itself for the connection of AWG24/7, AWG26/7, AWG27/7 patch cables to the IDC termination in order to create a consolidation point.

Performance Characteristics

– Re-embedded Cat.6_A (500 MHz) tested
acc. to ISO/IEC 11801 (2011-06)
IEC 60603-7-51
– 10 Gigabit-Ethernet compliant (IEEE 802.3an)
– GHMT Link Tests
Class E_A: 90 m 2-Connector Permanent Link acc. to ISO/IEC 11801 (2011-06)
– Universal Installation Dimension
universally, worldwide available installation dimension for mounting cut-outs 19,3 x 14,7 mm
– Real Cat.6_A RJ45 Jack / Core
fully-automated production of real Cat.6A RJ45 jack/core to guarantee a uniformly high quality standard (transmission characteristics) mating face: EN 60603-7-51
– Suitable for PoE+ (High Power over Ethernet)
acc. to IEEE 802.3at
– System warranty DataVoice PLUS25 Permanent Link Class E_A (500 MHz)
