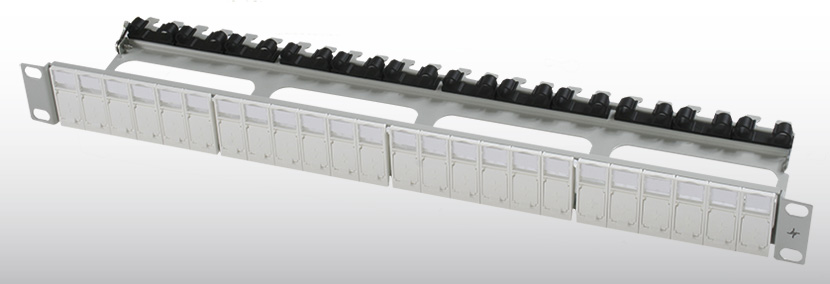

The new 19“ Frontplate Flex offers great benefits in the installation and whilst operation. Its rugged and buckling resistant construction offers room for up to 24 AMJ/UMJ Modules and Couplers. The AMJ/UMJ Modules and Couplers snap-into the bezels and then can be installed at any time from the front of the 19” Frontplate Flex which also allows easy maintenance. Label fields for every port offer individual marking of nameplates which are protected by a transparent cover.
The unmated RJ45 jacks of Telegärtner´s AMJ/UMJ Modules and Couplers can be protected against dust by a shutter. The snapped-in AMJ Modules and Couplers are connected to the 19” Frontplate Flex by an earth bar as well. A consistent earthing concept is also possible with the attached grounding cable. Furthermore, a cable relief and a cable routing guarantee a high-class stress relief.
Shutter and label field
Cable routing with clip-technology
Installation from the front
| Description | Order no. |
|||
| 19“ Frontplate Flex | H02025A0199 |
|||
| AMJ Module K Cat.6+ | J00029K0036 | |||
| AMJ Module K Cat.6+ blister package (24 pcs.) | J00029L0036 |
|||
| AMJ Coupler K Cat.6, f-f | J00029A0061 | |||
| AMJ Coupler K Cat.6, f-f, blister package (24 pcs.) | J00029B0061 | |||
| AMJ Coupler K Cat.5e, f-f | J00029A0051 | |||
| AMJ Coupler K Cat.5e, f-f, blister package (24 pcs.) | J00029L0051 | |||
| Plier wrench 1 3/8“; auxiliary tool for the assembly of AMJ Modules | N00000A0013 | |||
